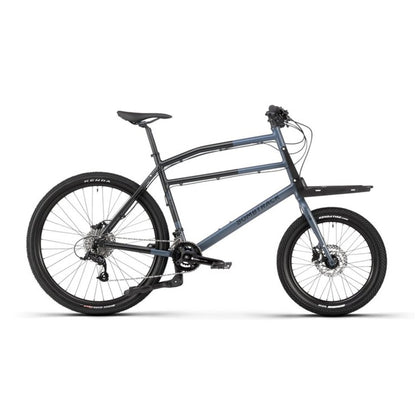

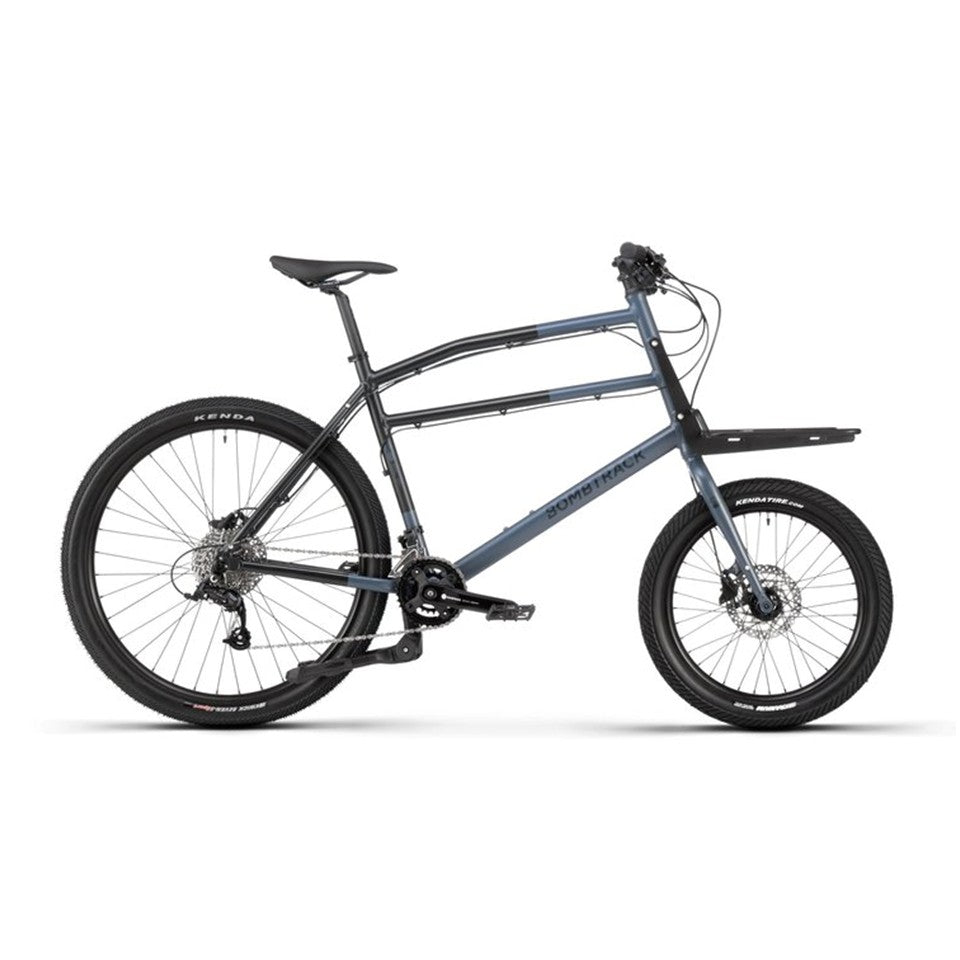

BOMBTRACK - MUNROE CARGO

If you’re trying to use the van less and the bike more, then the Munroe Cargo is the bike for you. Specifically designed aluminium frame for load carrying with its frame-mounted front rack with a 30 kg capacity, a double top tube and tall head tube deliver a stable ride with good visibility, even when loaded. Having a smaller front wheel aids manoeuvrability and both wheels have wide rims and fat Kenda tyres for strength. A 36 / 22T crankset coupled with a 9 speed 11 – 36T cassette allows you to keep the pedals spinning whatever the cargo. Shimano hydraulic brakes will keep you and your load safely under control and being a Bombtrack, there are bottle, rack and fender mounts on the frame for all your extra’s.

SPECIFICATIONS

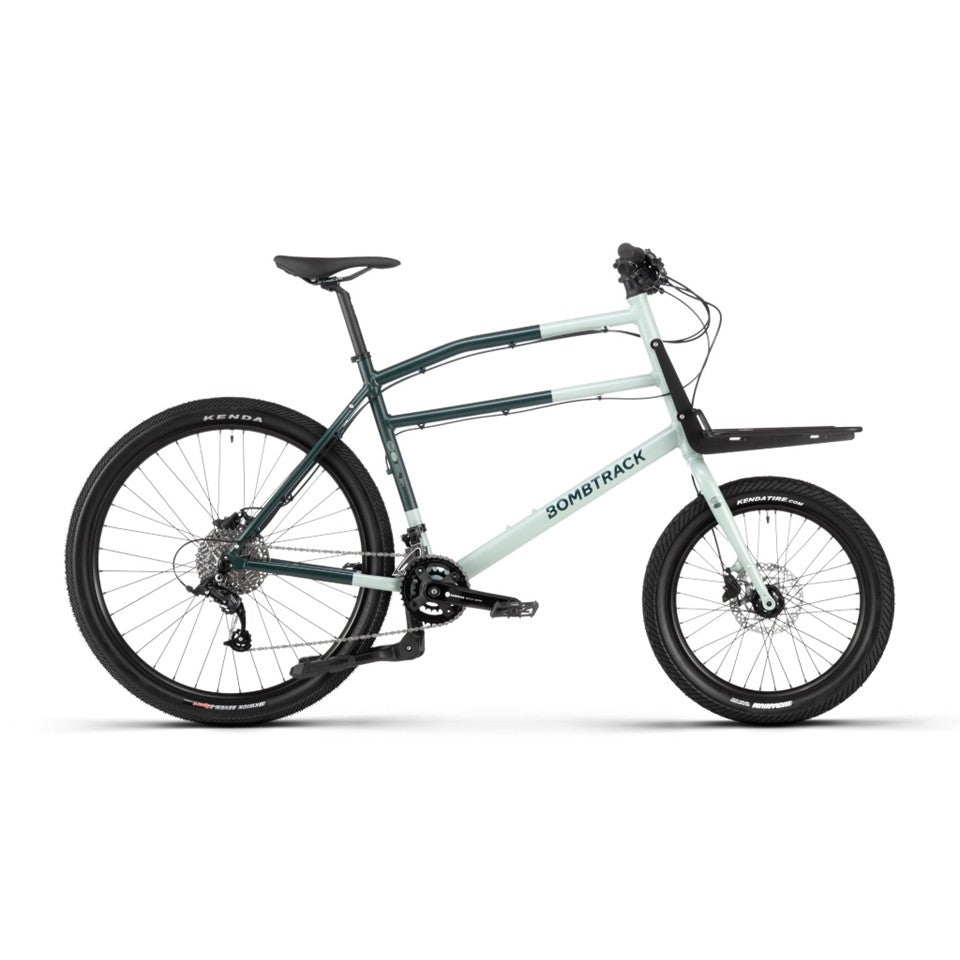

Color 2 - Matt swamp green

Frame - 6061-T6 hydroformed aluminium, TA, rack / fender mounts, 68 mm BSA BB shell

Fork - 6061 aluminium, TA dropouts, with fender mounts, internal light cable routing

Handlebar - Bombtrack Origin flat bar, 31.8 mm, 8° backsweep

Grips - Bombtrack Scroll grips

Stem - Bombtrack Wander forged aluminium stem, +17°

Headset - Neco H52MP sealed integrated aheadset, 1.1/8''

Levers - Shimano BL-MT200 hydraulic brake levers

Shifter - Microshift SL-M859 shifter 2 x 9

Brakes - Shimano BR-MT200 post mount hydraulic disc brake

Rotor - Shimano SM-RT26 160 mm rotors

Crankset - Bombtrack Aude aluminium crank, square taper

BB - BSA sealed BB, 119 mm, square taper

Pedals - Wellgo B109N flat pedal

Chain - KMC X9 chain, 1/2" x 11/128"

Chainring - Forged steel, 36 / 22 T

Cassette - Microshift CS-H092 9-speed, 11 - 36 T

Front derailleur - Microshift FD-M462-B

Rear derailleur - Microshift RD-M46S

Front hub - Bombtrack Arc sealed hub, 6-bolt disc

Rear hub - Bombtrack Arc sealed hub, 11-speed, 6-bolt disc

Through axle - 12 x 100 mm / 12 x 142 mm

Front rim - Bombtrack Lune double wall, i24, 20"

Rear rim - Bombtrack Lune double wall, i24, 27.5"

Saddle - Bombtrack Fuzz saddle

Seat post - Bombtrack Beech 27.2 mm x 400 mm

Seat clamp - Bombtrack Origin 31.8 mm

Front tire - Kenda Kranium 20 x 2.3"

Rear tire - Kenda Kwick Seven.5 27.5 x 2.2"

Fender - -

Rack - Bombtrack Cargo frontrack, aluminium

Kickstand - Center mount double leg kickstand

Light - -

Weight - 14.8 kg (size M)

Weight frameset - 3240 g frame (size M, incl. TA, hanger, rack and bolts) / 770 g fork (400 mm steerer)

Maximum rider weight - 140 kg incl. luggage

ASTM riding condition - 1



FRAME GEOMETRY

Bike Size - M | L

Wheel Size - 27.5'' / 20'' | 27.5'' / 20''

Seat Tube Length - 460 | 520

Horizontal TT length - 588 | 617

Seat Angle - 73.0° | 73.0°

Head Angle - 71.0° | 70.5°

Headtube Length - 300 | 350

BB Drop - 65 | 65

Chainstay Length - 440 | 440

Fork Offset - 40 | 40

Trail - 45 | 48

Wheelbase Length - 1097 | 1135

Standover - 780 | 832

Reach - 414 | 430

Stack - 567 | 612

Front Center - 663 | 701

Axle to Crown - 348 | 348

Minimum rider height ¹ - 1650 | 1800

Maximum rider height ¹ - 1820 | 1950
